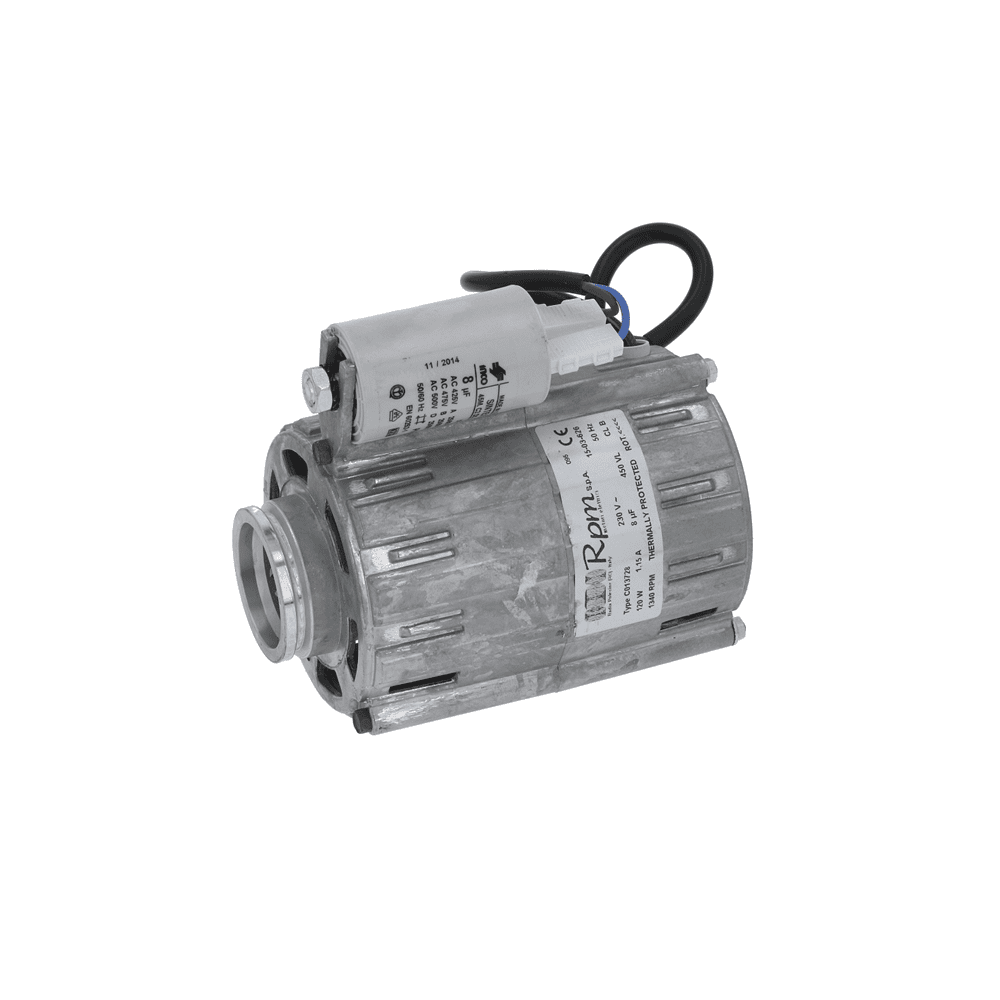

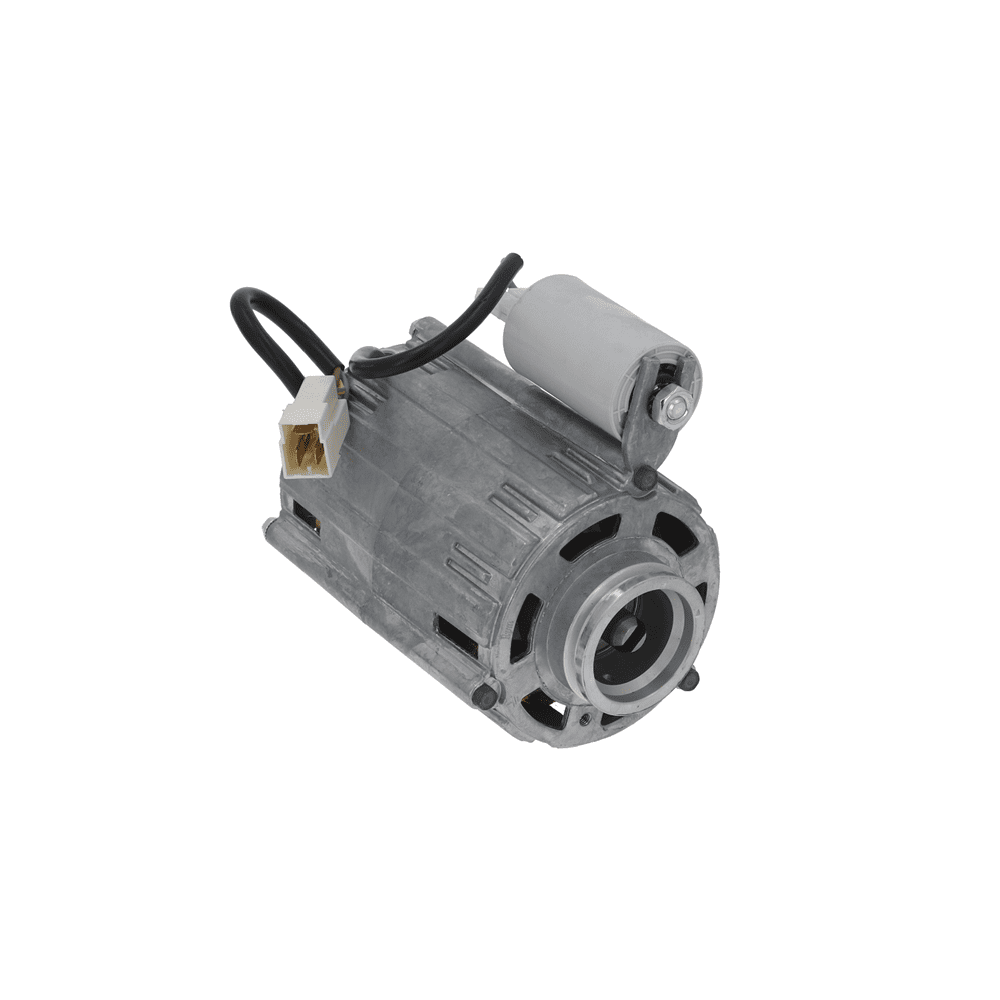

1/4 Horse Power 230 Volt Clamp Flange Pump Motor

1/4 Horsepower 230 Volt Clamp Flange Pump Motor

Standard pump motor for clamp-flange rotary vane pumps, wired for CMA-family equipment (Astoria, Orchestral, Wega). Works only with the V_41R, V_41RHV, V_41S and V_46 pumps.

SPECIFICATIONS

• Model: C013728
• Power: 120W, 230V, 50Hz, 1.15A
• Capacitor: 8 µF
• Speed: 1,340 RPM
• Dimensions: 6"L x 5"W x 6"T

COMPATIBILITY

• Fits: CMA-family equipment (Astoria, Orchestral, Wega) with a rotary vane pump
• Works with: V_41R, V_41RHV, V_41S and V_46 pumps only
• Replaces: V_575

INSTALLATION

Moderate DIY job for someone comfortable with electrical wiring; a mounting bracket is sold separately and required.

PRO TIPS

• This motor's wiring is set up specifically for CMA-family equipment, don't assume a generic 1/4 HP motor from another brand's machine is a drop-in electrical match even if the mechanical mounting looks the same.
