1/4" Mater Pressurestat

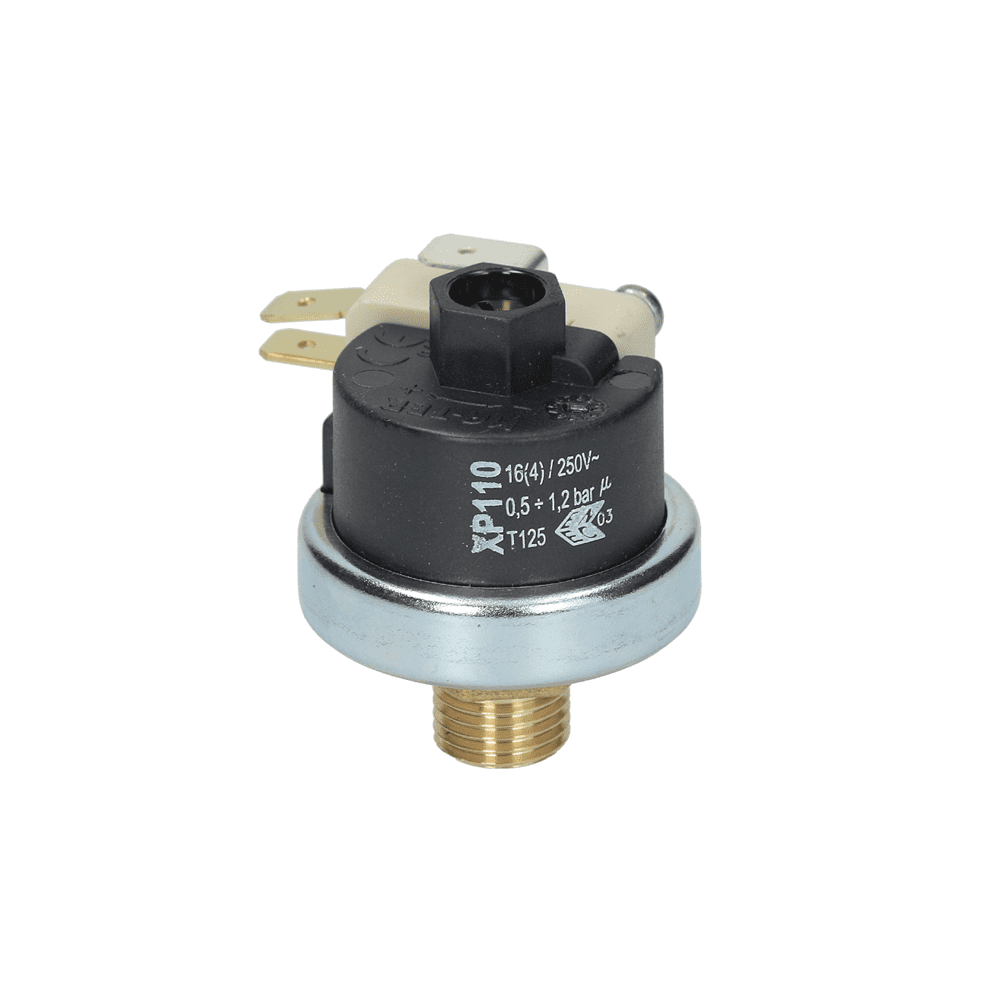

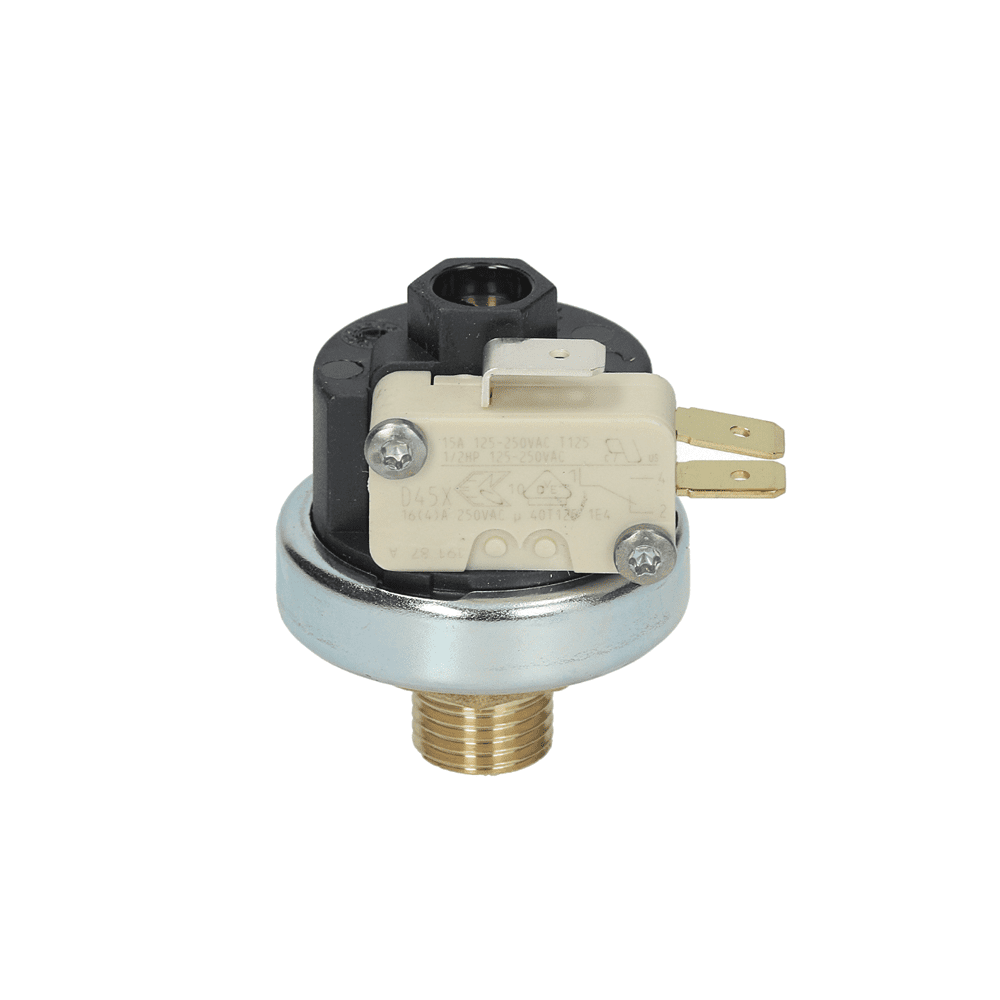

1/4" Mater XP110 Pressurestat

This XP110-coil pressure switch is specified for ECM (Italy) and ECM Manufacture (Germany) non-PID models only, preset to 0.9 bar. It also cross-references to a Rocket part number.

SPECIFICATIONS

• Adjustment range: 0.5-1.2 bar (preset 0.9 bar)
• Connection: 1/4"M BSP
• Rating: 15A at 125V, 16A at 250V
• Note: fittings on this XP110 coil version are shorter, ~8 mm

COMPATIBILITY

• Fits: ECM (Italy) and ECM Manufacture (Germany) non-PID models
• Replaces: C199900294 (Rocket)
• Works with: any application using a 1/4" BSP Mater XP110 switch

INSTALLATION

Technician install recommended - electrical connections plus a pressurized boiler fitting.

PRO TIPS

• Avoid repeated or frequent pressure adjustments - these pressurestats weren't designed for it, and doing so significantly shortens their service life.
