110/120V 50/60Hz 9W 1/4 x 1/4 Two-way Parker Solenoid

Nuova Simonelli Two-way Parker Solenoid, 110/120V

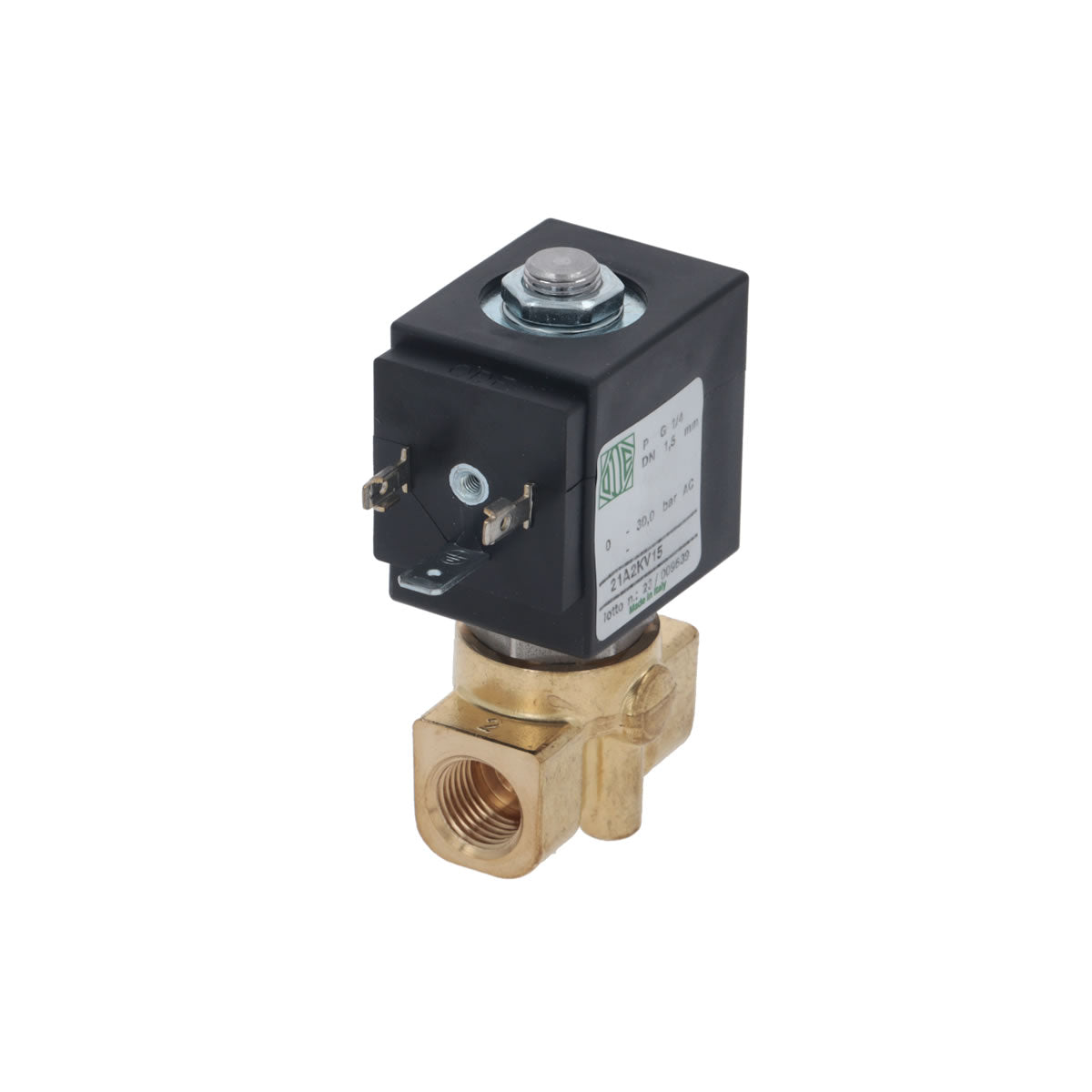

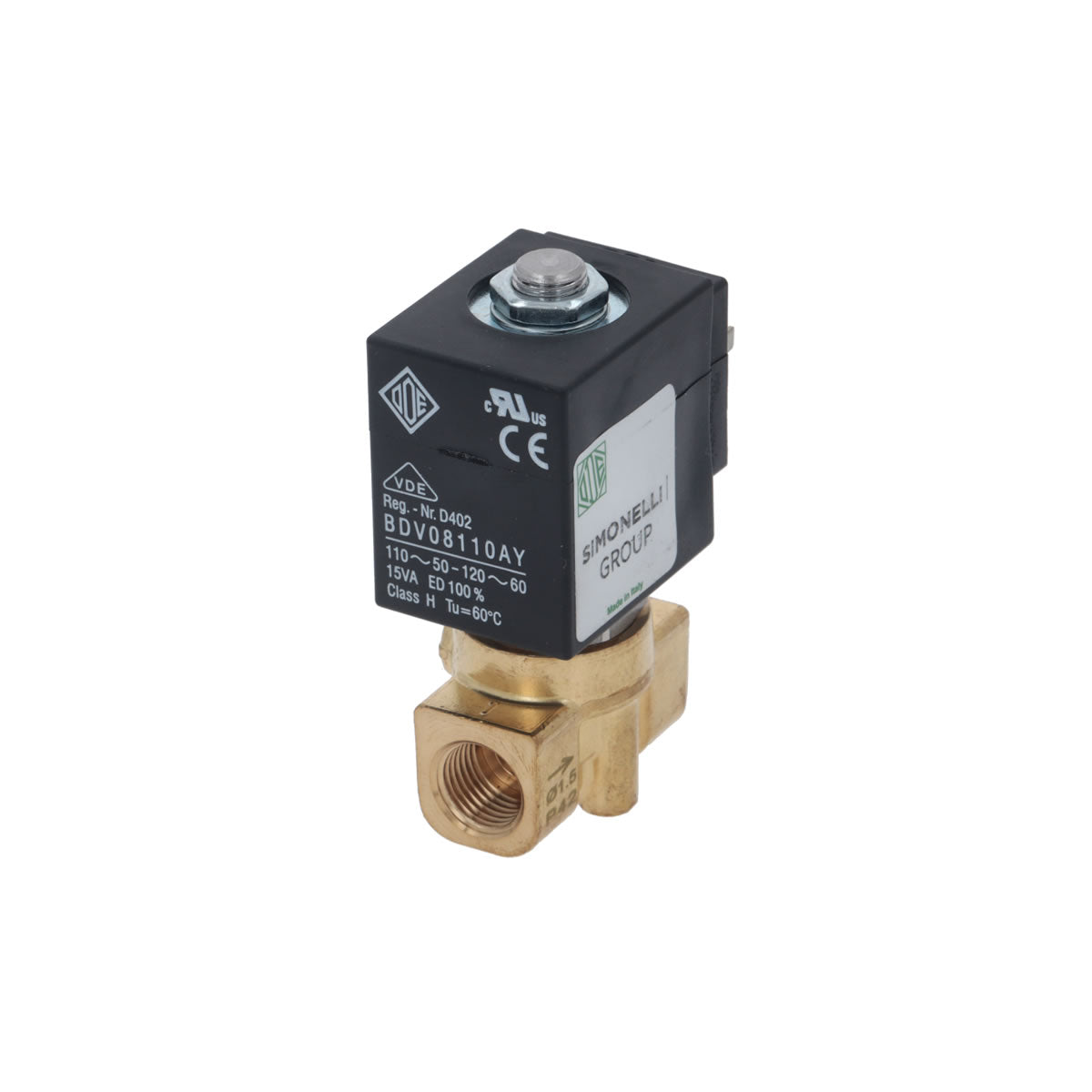

A Parker-built two-way brass solenoid valve used on Nuova Simonelli machines, wired with a 15VA coil rated for 110/120V 50/60Hz. It uses the W_635 connector, and the correct fluid direction is marked on the brass body's inlet.

SPECIFICATIONS

• FKM seal, 1.5 mm orifice
• Coil BDV08110AY, 110/120V 50/60Hz, 15VA
• Operating temperature: -10°C to +140°C
• 1/4" FF ports, max 30 bar

COMPATIBILITY

• Fits: Nuova Simonelli machines using the 1/4" two-way solenoid circuit
• Replaces: Nuova Simonelli part #04100013
• Works with: W_635 voltage connector

INSTALLATION

Electrical solenoid work is best handled by a qualified technician.

PRO TIPS

• Match the flow direction arrow on the body to your plumbing before installing, reversing a solenoid's inlet and outlet will prevent it from sealing properly.
