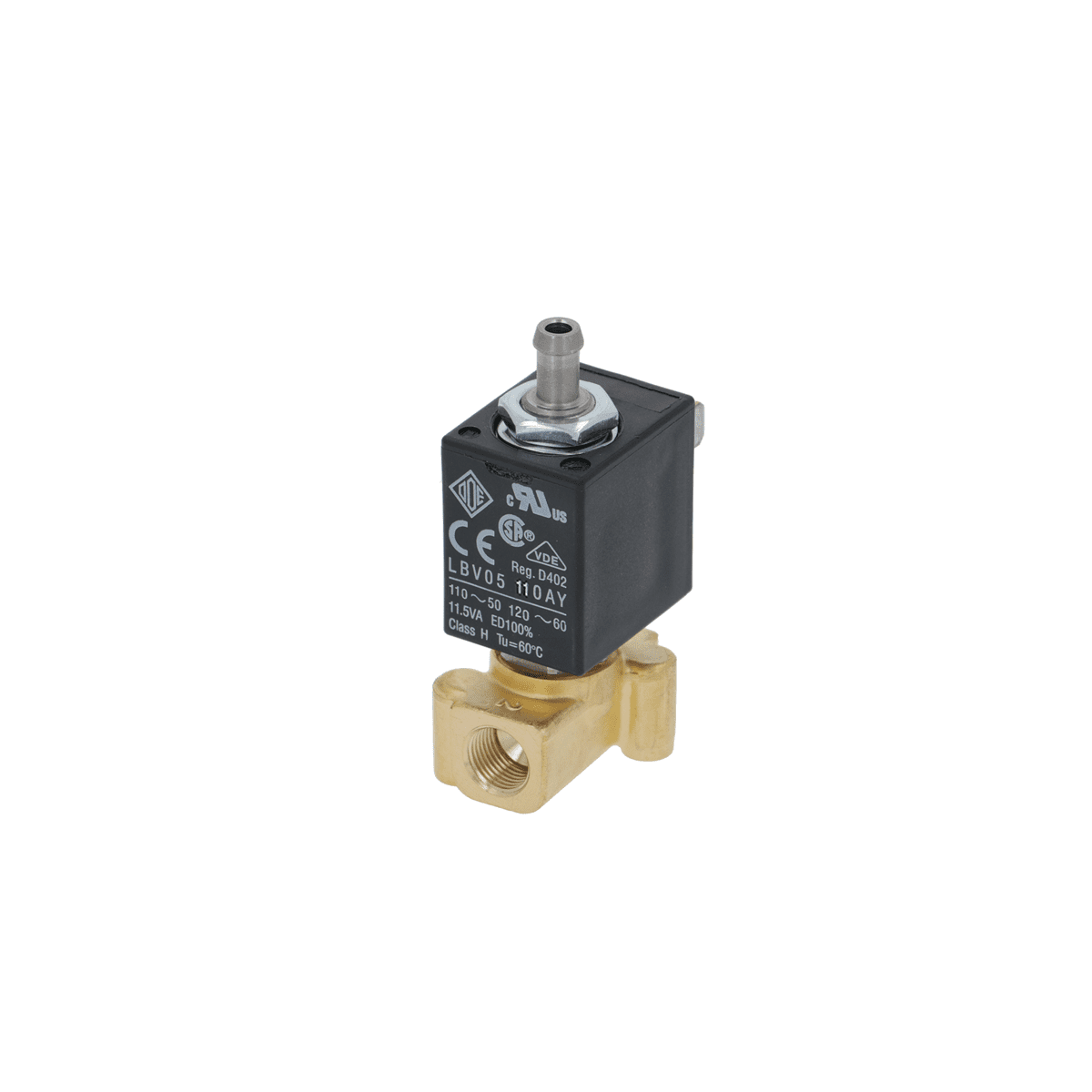

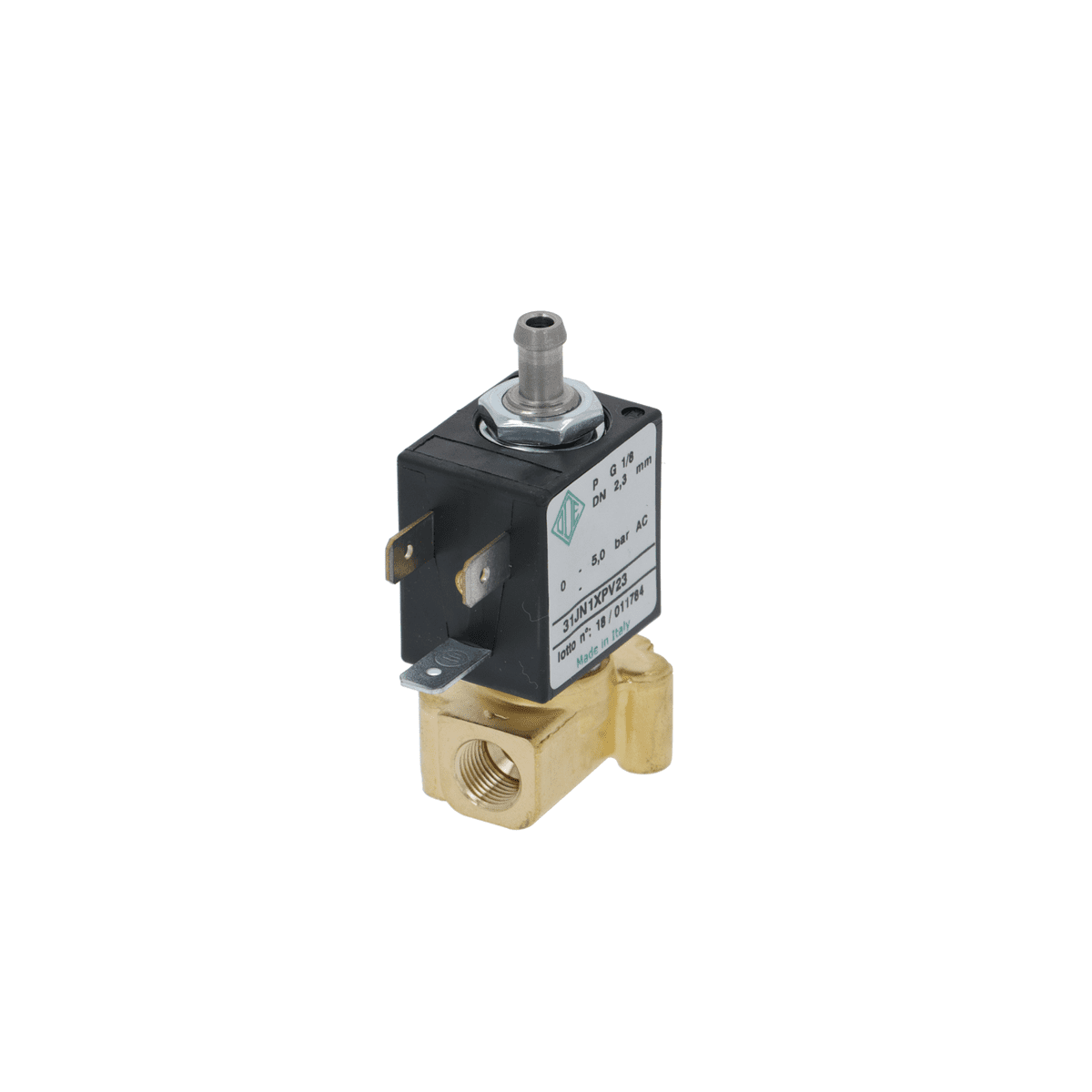

110V 1/8" x 1/8" Three-way Solenoid

110V 1/8" x 1/8" Three-Way Solenoid Valve

A thin-body 110/120V coil solenoid valve built for the Nuova Simonelli Microbar, with a Viton seal rated for a wide temperature range.

SPECIFICATIONS

• Port size: 1/8" F BSP
• Seal: Viton, orifice ø 2.3 mm
• Coil: LBV05110AY, 11.5VA, 110/120V 50/60Hz
• Operating range: -10°C to +140°C

COMPATIBILITY

• Fits: Nuova Simonelli Microbar
• Replaces: previously used on Ascaso Uno, Duo, Trio, Dream, Arc and Elipse home units (those models have since transitioned to I706)
• Works with: the V_378 solenoid connector (thin-body coil version)

INSTALLATION

Recommended for a qualified technician, since it requires working on a live water/electrical solenoid circuit.
