110/115V 50/60 Hz 9W Three-way Parker Solenoid

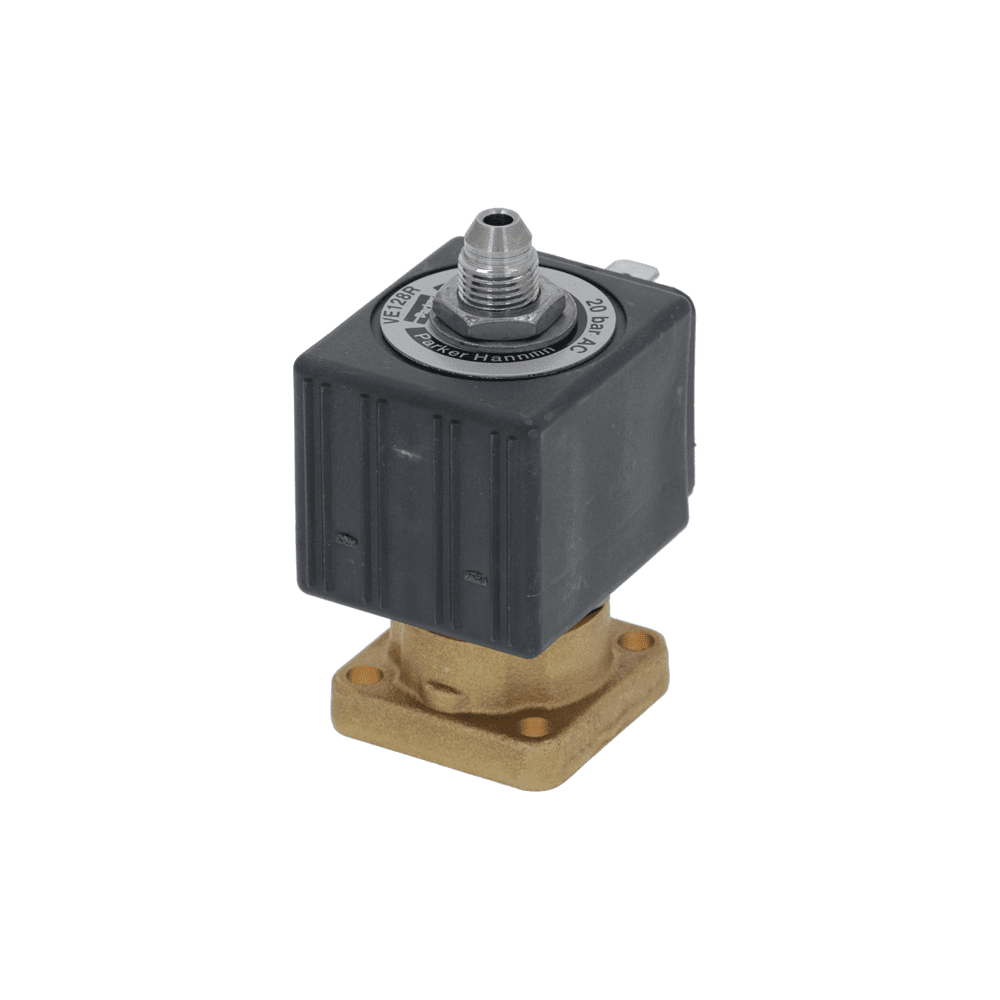

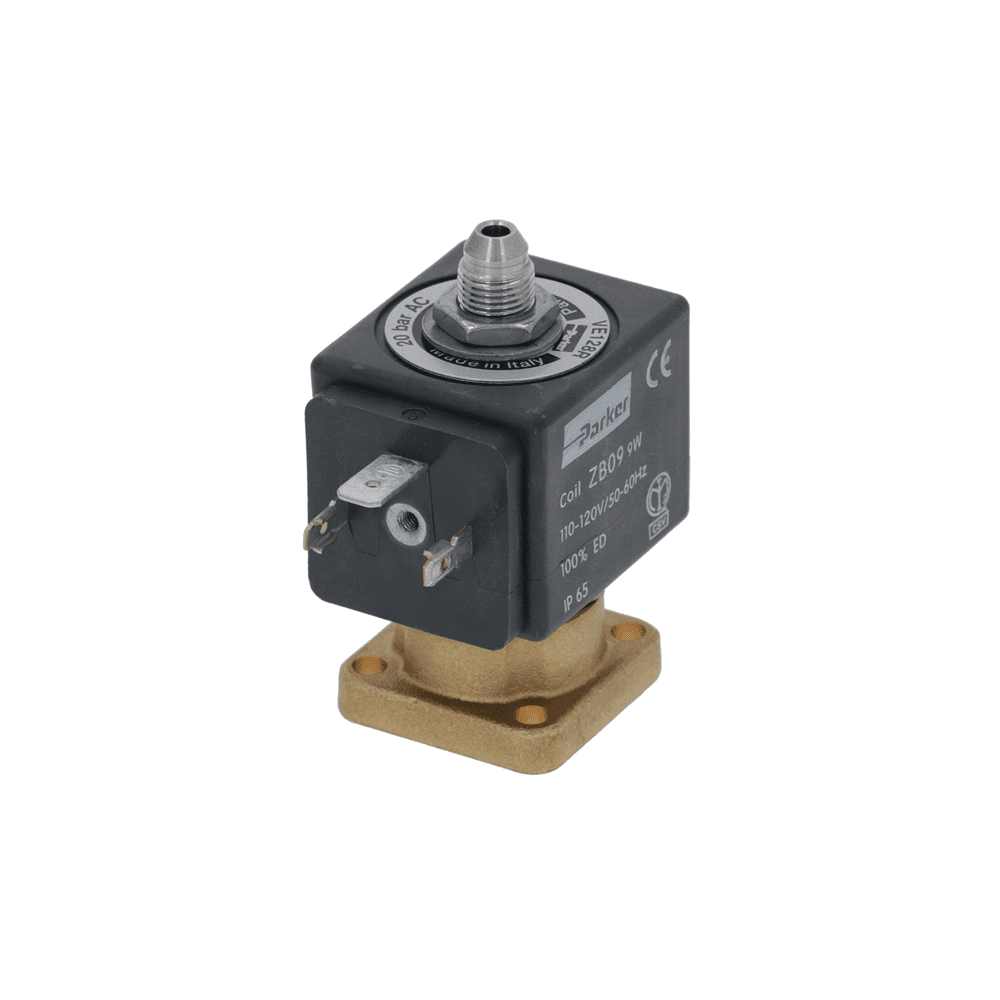

Complete Parker VE128IR Three-Way Solenoid Valve

A complete Parker VE128IR three-way solenoid, ready to install with o-rings, base, and a ruby-seated valve guide already assembled. The ruby nucleus seat resists the pitting and wear that plain metal or PTFE seats develop over years of hot-water cycling.

SPECIFICATIONS

• VE128IR, 1/8" conical outlet, max 20 bar
• Ruby seal, 1.3 mm orifice
• Coil ZB09, 9W, 110/120V 50/60Hz
• Fluid temperature range -40°C to +140°C
• Uses large W_635 connector

COMPATIBILITY

• Fits: Machines using the Parker VE128IR three-way solenoid platform

INSTALLATION

Bench-level plumbing job, expect to disconnect and reseal the inlet/outlet fittings, so budget time for fresh gaskets on those connections too.

PRO TIPS

• The ruby seat is the reason to spend more on this valve instead of a generic three-way, it holds its sealing edge far longer against mineral-heavy water than a standard brass or PTFE seat, so in a hard-water area this is the upgrade path, not just a like-for-like swap.
