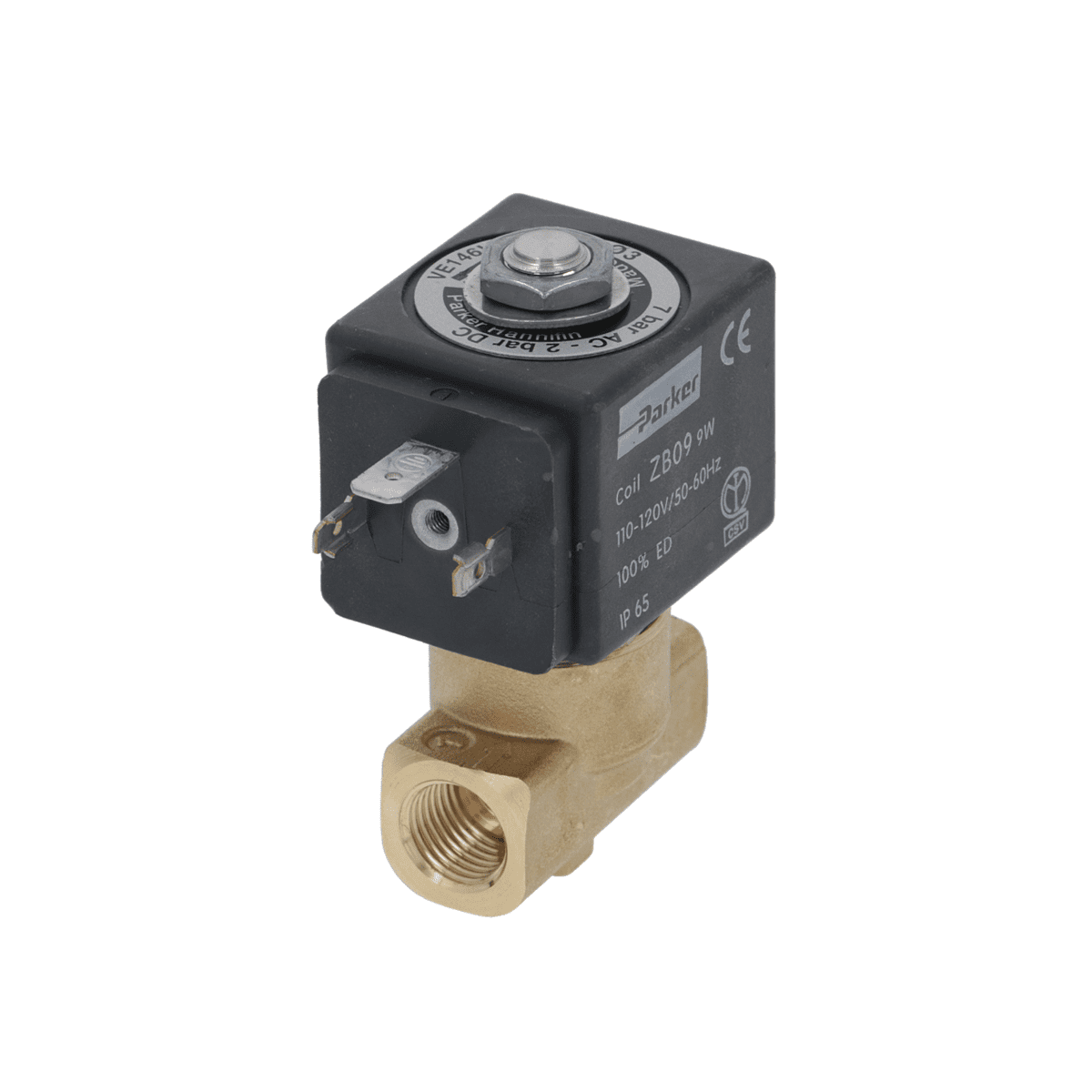

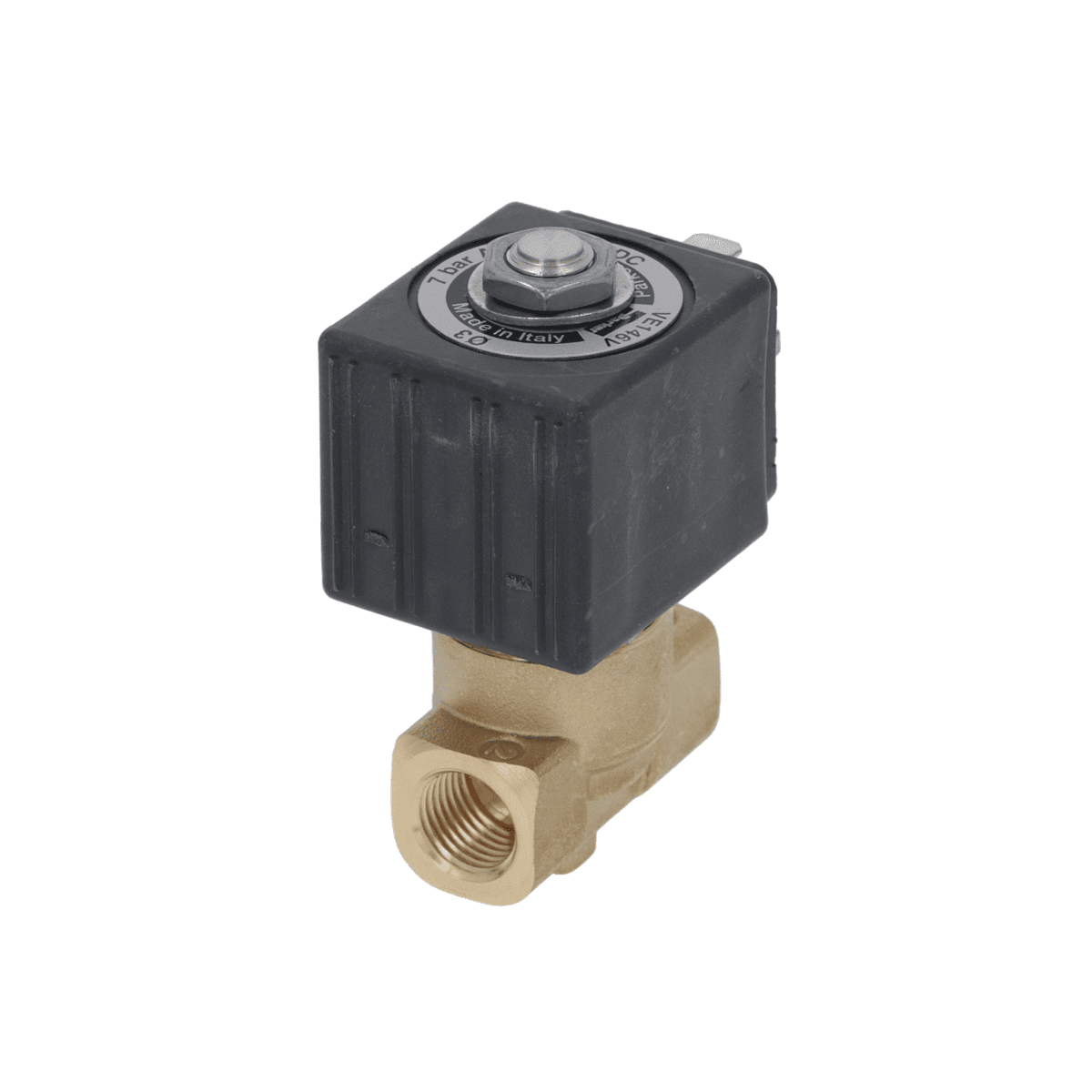

115V 50/60Hz 9W 1/4" x 1/4" Two-way Parker Solenoid

115V Two-Way Parker Solenoid Valve

This 115V, 50/60Hz, 9W two-way Parker solenoid valve (1/4" x 1/4" ports) controls water flow with a Viton seal, rated to 7 bar, and uses connector W_635 (sold separately).

SPECIFICATIONS

• Model: VE146YV
• Ports: 1/4" FF, max 7 bar
• Seal: Viton; Orifice: ø3 mm
• Coil: ZB09, 9W, 110/120V, 50/60Hz
• Fluid temp range: -10°C to +140°C
• Length: 40 mm port-to-port; Height: 75 mm

COMPATIBILITY

• Fits: espresso machines using a 1/4" x 1/4" two-way Parker solenoid of this spec
• Replaces: F_1866 / Parker VE146YV
• Works with: W_635 connector (not included)

INSTALLATION

Technician-recommended for electrical/plumbing integration; note the fluid direction indicator on top of the brass body inlet and install accordingly.

PRO TIPS

• Match the fluid direction arrow on the valve body to your water flow direction, installing it backwards will block flow entirely.
