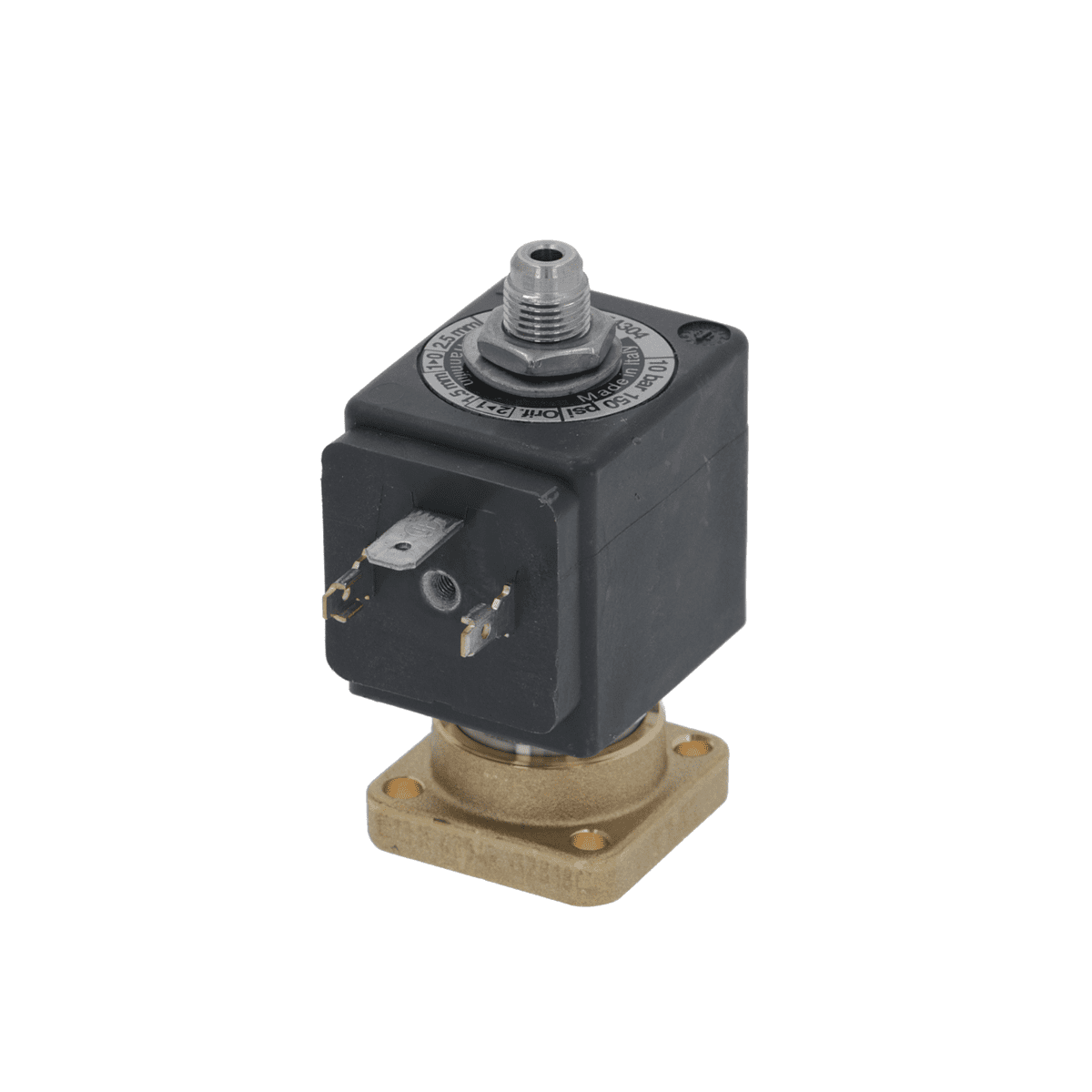

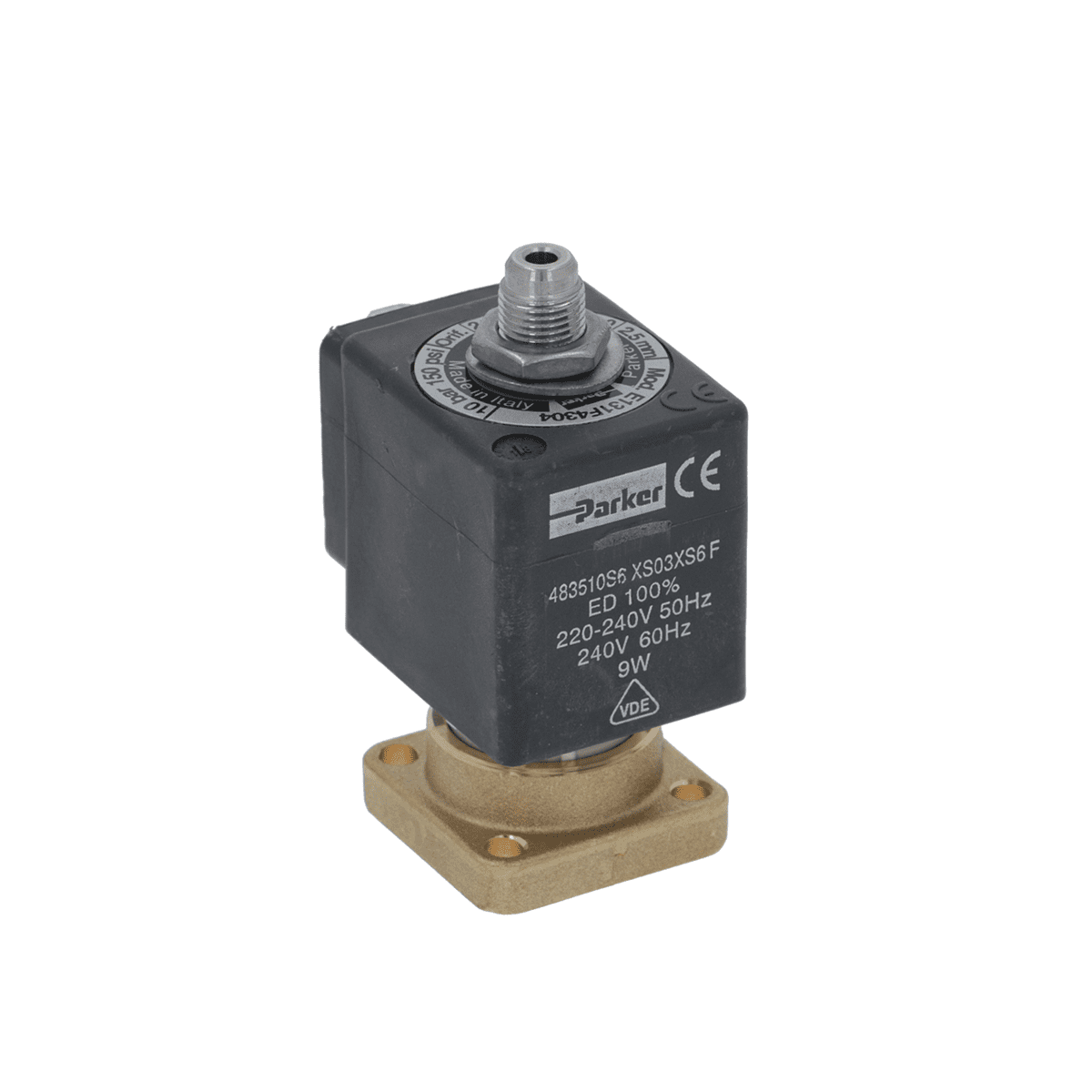

220V 50/60Hz 9W Three-way Lucifer Solenoid

220V 9W Three-Way Lucifer Solenoid, Complete

A complete three-way Lucifer solenoid, valve guide (C_166) and coil (C_167) combined into one ready-to-install unit, so you're not hunting down matching parts separately.

SPECIFICATIONS

• Model: E131F4304
• Drain: 1/8" conical, max 10 bar
• Seal: Ruby, orifice ø 1.5 mm
• Coil: 483510S6, 9W, 220/240V, 50/60Hz
• Fluid temperature: -40°C to +140°C

COMPATIBILITY

• Fits: machines requiring a Lucifer-pattern three-way solenoid at 220–240V
• Replaces: two-part combination of C_166 (valve guide) and C_167 (coil)
• Works with: W_635 connector

INSTALLATION

Technician-recommended, involves wiring the coil connector and confirming correct drain orientation.

PRO TIPS

• Parker-Hannifin now owns the Lucifer solenoid line, so replacement coils are marked "Parker" but still use Lucifer numbering (some even keep the raised "Lucifer" embossing), only Lucifer-pattern coils are compatible with this valve body. Own a Rancilio? Rancilio has since moved to a newer Sirai solenoid that's worth considering as an upgrade.
