24V 50/60Hz 9W 1/8" x 1/8" Two-way Lucifer Solenoid

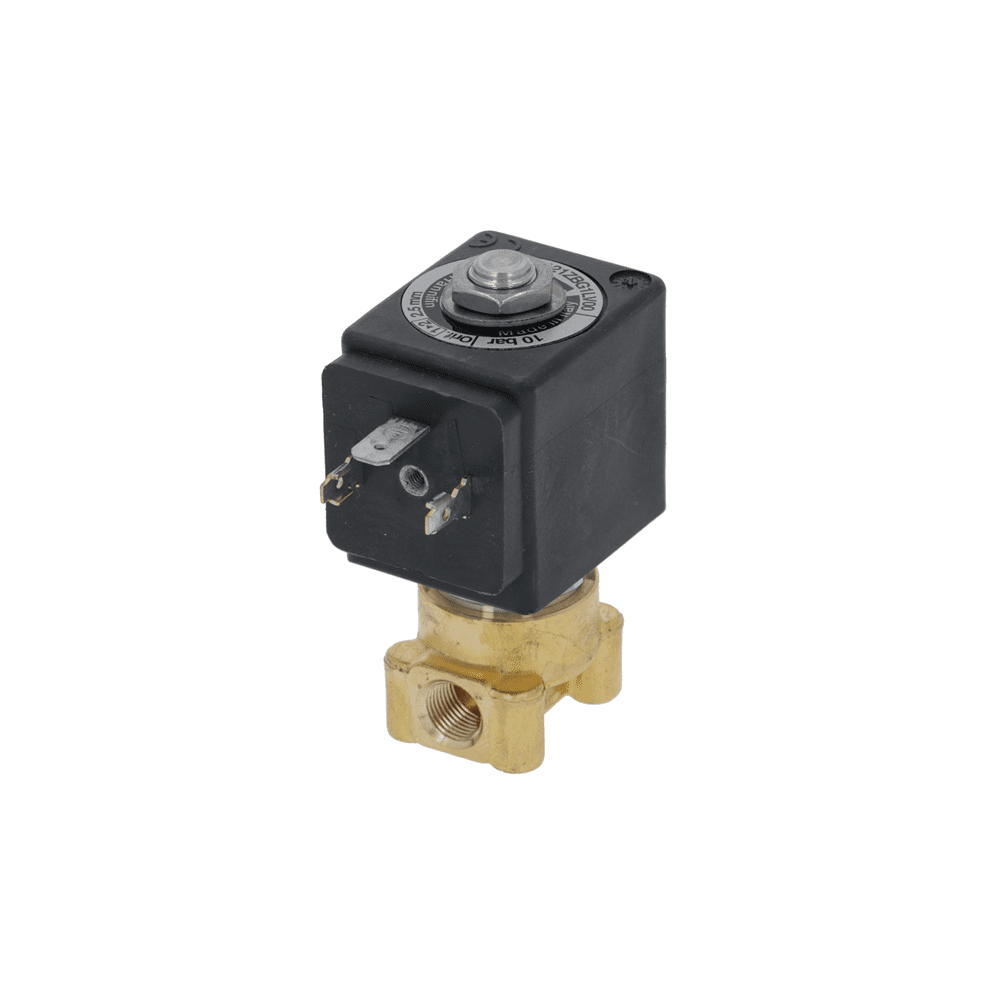

24V Two-Way Lucifer Solenoid Valve Assembly

Complete solenoid assembly pairing a genuine Lucifer 24V coil with a 1/8" F x 1/8" F BSP two-way valve body. Uses the standard espresso machine electrical connector.

SPECIFICATIONS

• Model: 7121ZBG1LV00
• Fittings: 1/8" FF BSP, max 10 bar
• Seal: FKM, orifice ø 2.5 mm
• Coil: 483510P0, 9W, 24V, 50/60Hz
• Fluid temperature range: -40°C to +140°C

COMPATIBILITY

• Works with: Lucifer-pattern valve bodies only, the coil and connector are also sold separately

INSTALLATION

Best handled by a qualified technician, solenoid valve replacement involves electrical and plumbing connections.

PRO TIPS

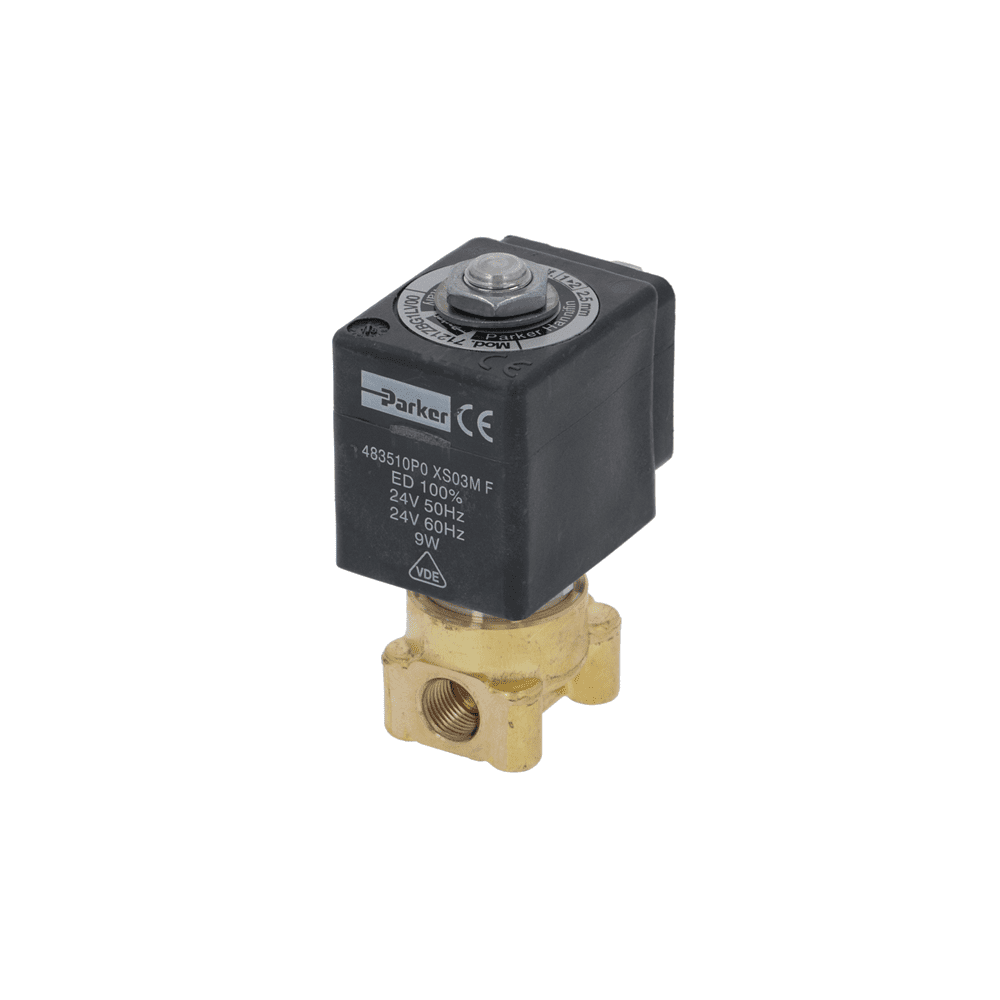

• Parker-Hannifin now owns the Lucifer line, so replacement coils are printed "Parker" (some still carry an embossed "Lucifer" mark), this is normal, and the coil is still only compatible with Lucifer-pattern valve bodies like this one.
• This item is non-returnable once ordered, so confirm your voltage (24V) and fitting size (1/8" BSP) before purchasing.
