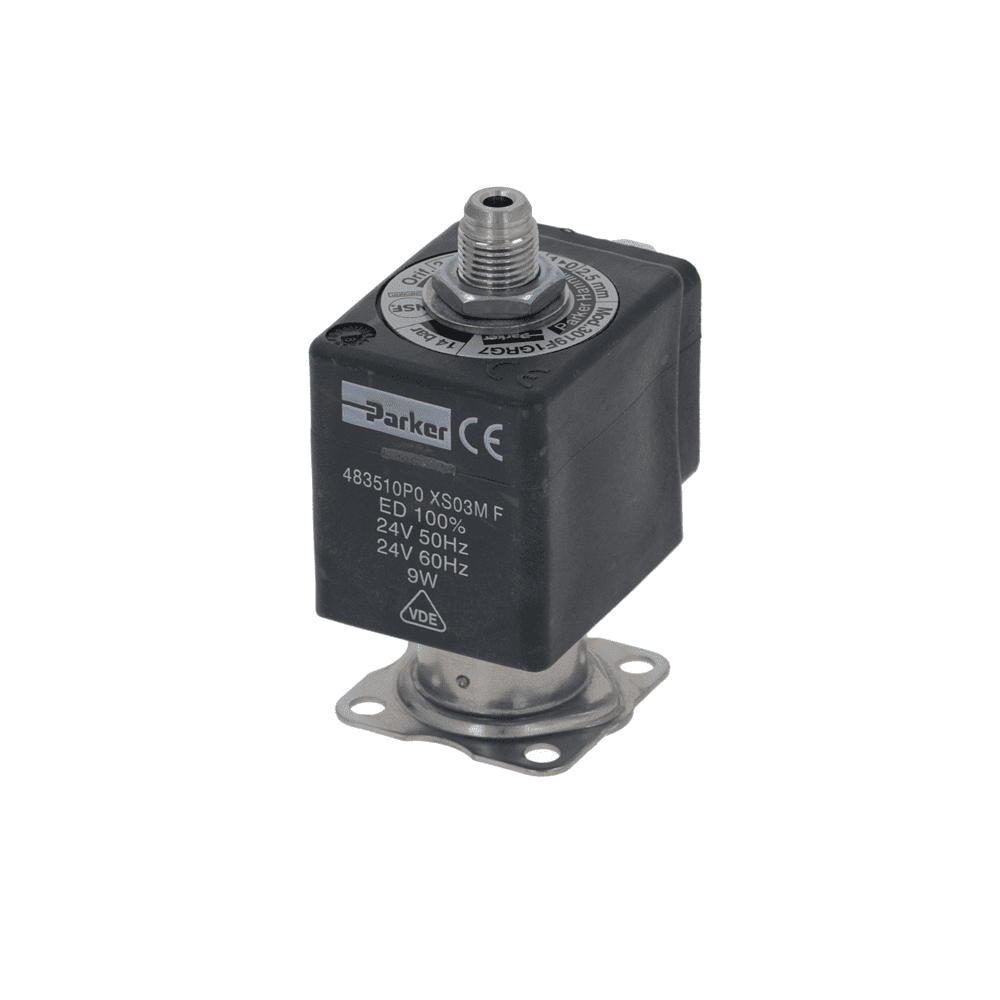

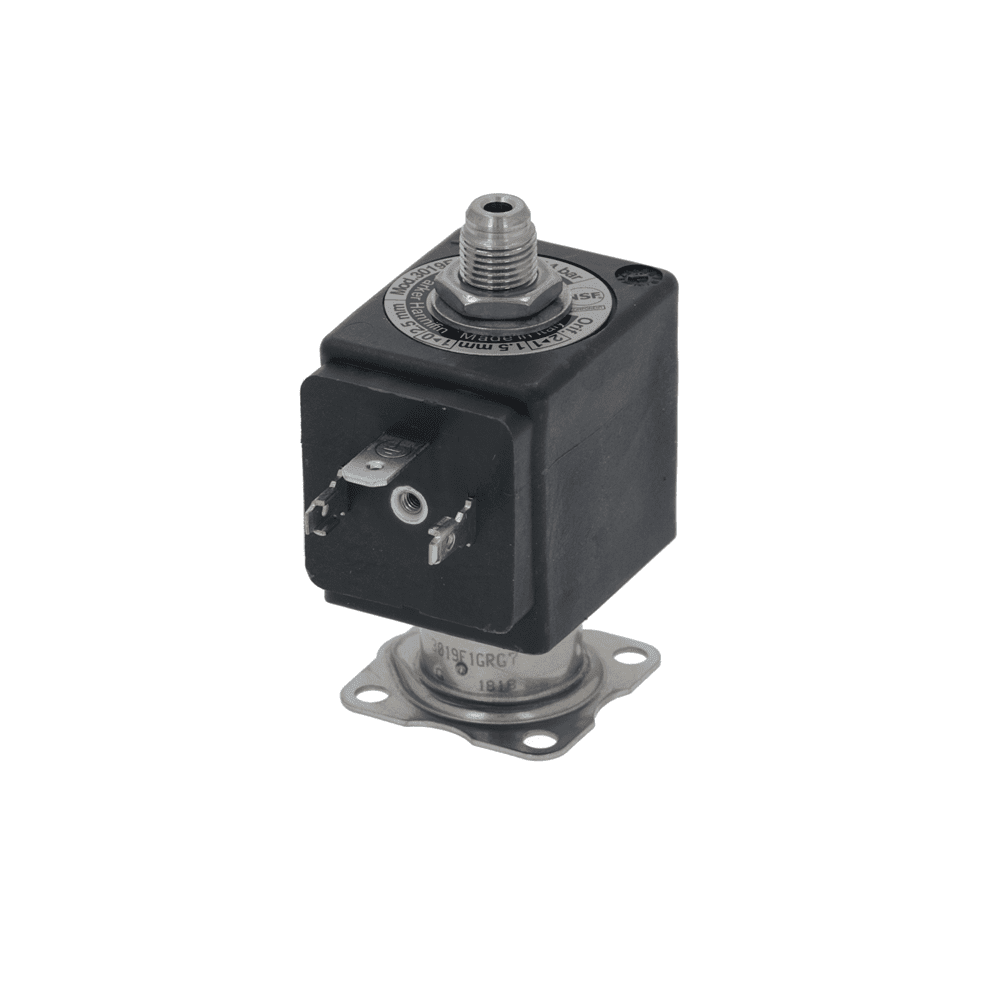

24V Parker Liquipure Three-way Solenoid Complete

Parker Liquipure 24V Three-Way Solenoid Valve, Complete

A complete Parker Liquipure three-way solenoid valve with a stainless steel, NSF-rated body and Ruby seal, built for the temperature swings of espresso equipment (-40°C to +140°C). Fits select models across several commercial platforms, check your machine's exact model before ordering, as not every configuration within a line uses this valve.

SPECIFICATIONS

• Parker part #3019F1GRG7
• 1/8" F drain, max 14 bar
• Ruby seal, 1.5mm orifice
• Lucifer coil 483510P0 XS03MF, 9W, 24VAC 50/60Hz
• Stainless steel, NSF-rated body
• Fluid temperature range: -40°C to +140°C

COMPATIBILITY

• Fits: La Cimbali M24, M39GT, Superautomatic M53, S54; Faema Emblema, Enova, Teorema; Rancilio Classe; Slayer (all models), suitable for some, but not all, sub-models within these lines

INSTALLATION

This is a wired electrical solenoid valve, installation should be handled by a qualified technician.

Note: As an electrical/solenoid component, this item is final sale and not eligible for return per our return policy.

PRO TIPS

• Because this valve fits some, but not all, sub-models within each listed line, cross-check the Parker part number stamped on your existing solenoid body against #3019F1GRG7 before ordering, it's non-returnable once installed.
