Description

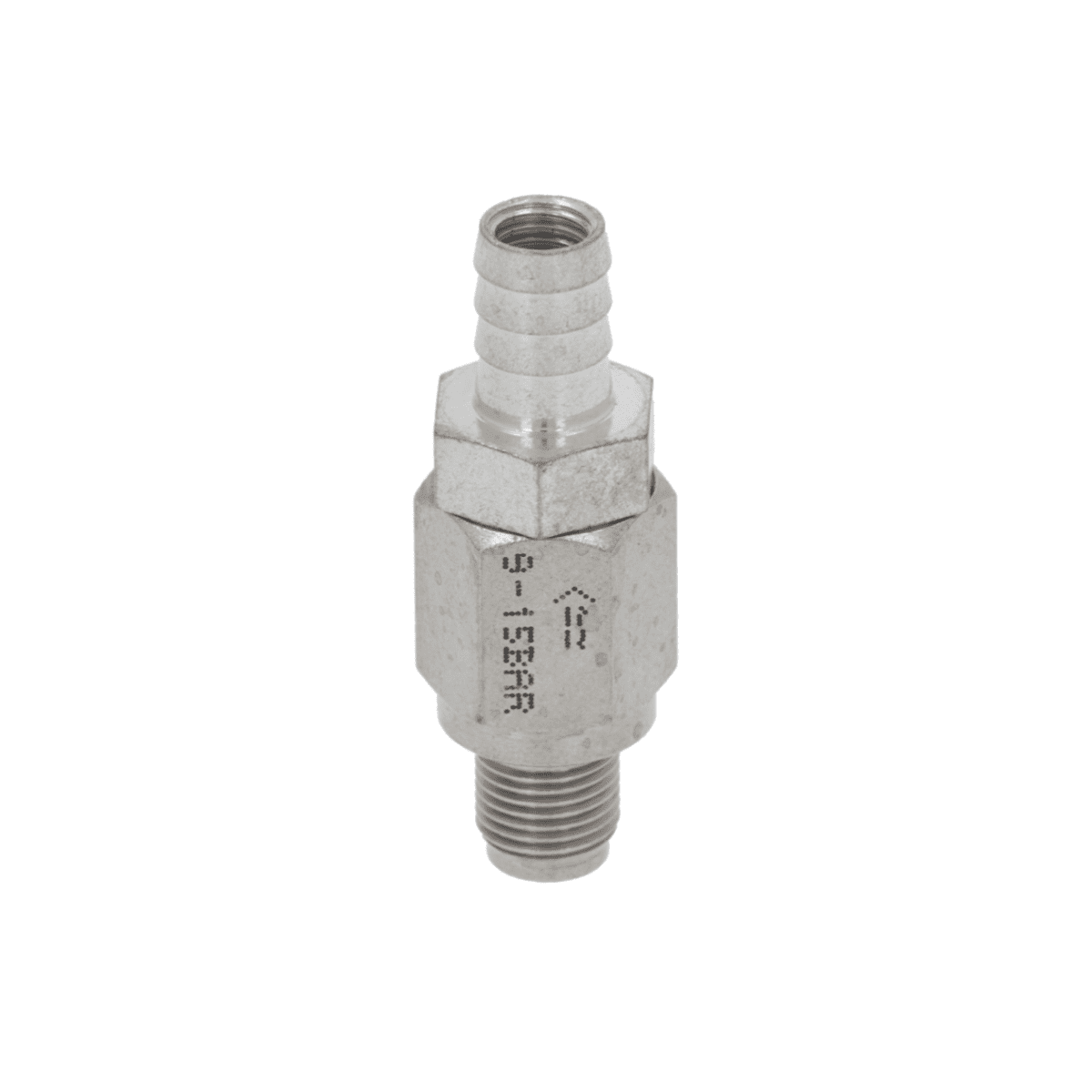

9mm x 1/8" BSP Expansion Valve

Spring-loaded expansion (over-pressure) valve used in select Gaggia and La Pavoni equipment, opening at 11 bar to protect the boiler from excess pressure. The barbed outlet fits 8mm I.D. tubing.

SPECIFICATIONS

  • Operating range 9-15 bar; opens at 11 bar
  • Barbed outlet fits 8mm I.D. tubing

COMPATIBILITY

  • Fits: select Gaggia and La Pavoni machines using this 9mm x 1/8" BSP valve
  • Replaces: cross-references include Ascaso P.166, Fiorenzato A1300113, Gaggia/Saeco WGA5001014000, Lavazza 10061925, LF 1523432, Pavoni 453201, and Slayer 42000-10020

INSTALLATION

Should be installed by a qualified technician as part of the boiler's pressure-relief system.

PRO TIPS

  • Confirm your machine's calibration pressure before swapping, this valve is fixed to open at 11 bar and is not field-adjustable.
