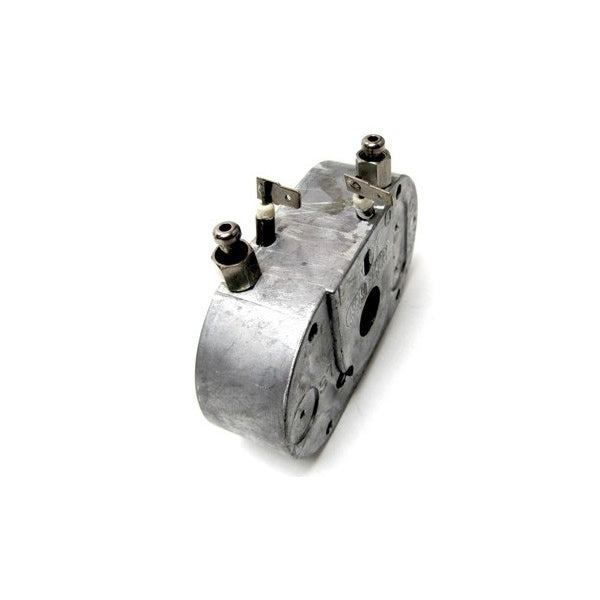

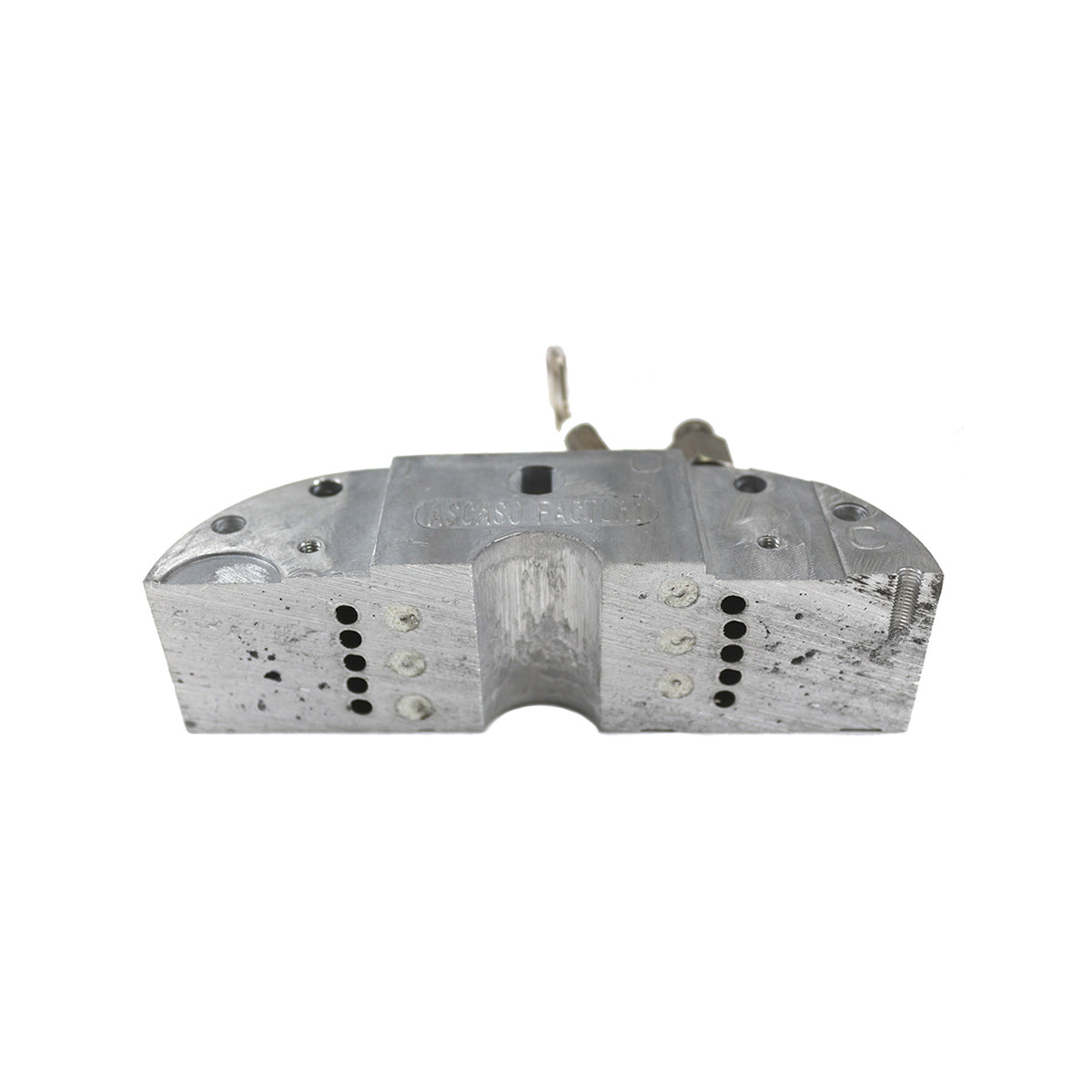

Ascaso 230V Thermoblock with Fittings

Ascaso 230V Thermoblock with Fittings (1000W)

Complete 230V/1000W thermoblock heating element with two 1/8" female BSP fittings for water circulation. The heating filament is wrapped in a 6 mm thick ceramic insulator that circles the center three times, while the internal water tubing (3.5 mm ID) circles the center five times for heat transfer. Gaskets are not included.

SPECIFICATIONS

• 230V, 1000W
• 2 x 1/8" female BSP fittings for water circulation
• Ceramic insulator 6 mm thick, 3 wraps around the filament
• Water tubing 3.5 mm internal diameter, 5 wraps

COMPATIBILITY

• Fits: Ascaso models using this thermoblock design
• Replaces: Ascaso I.2237
• Works with: 2 x I.3096 heat exchanger gaskets (not included)

INSTALLATION

Technician recommended - involves electrical disconnection and plumbing work on a pressurized water line.

PRO TIPS

• Always install both I.3096 gaskets fresh alongside the new thermoblock - reusing a compressed original gasket on a brand-new block is the most common reason a "new part" leaks right out of the box.

Non-returnable, see: Return Policy
