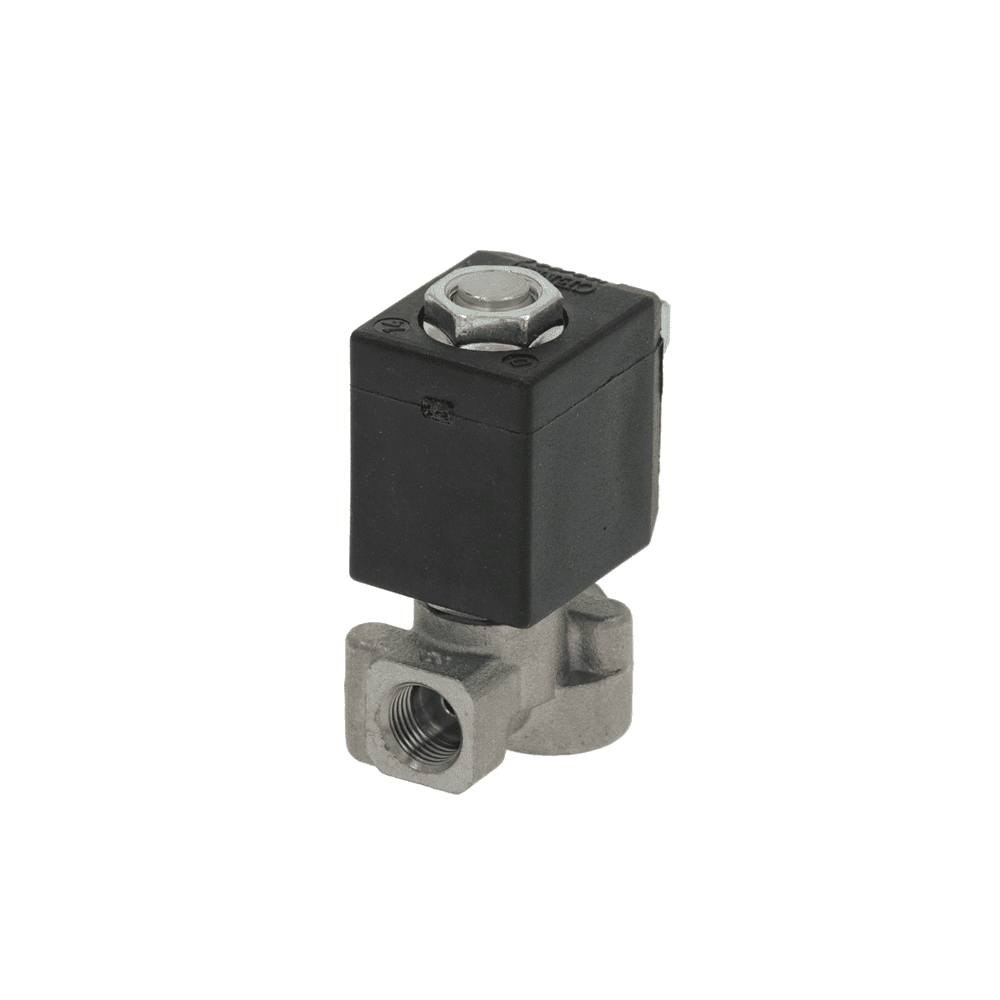

110/120V 1/8" x 1/8" 2-way CEME Solenoid

CEME 2-Way Solenoid Valve, 110/120V

This CEME (model 5220) 2-way solenoid valve is a direct-fit replacement for Nuova Simonelli part #04100043, switching at 110-115V 50Hz / 120V 60Hz.

SPECIFICATIONS

• Case: nickel plated
• Max 13 bar
• VITON seal, 2.0 mm orifice
• Coil: B4, 14VA, 100/120V 50/60Hz
• Fluid temperature: -10°C to +140°C
• 23 mm port-to-port, 55 mm tall

COMPATIBILITY

• Replaces: Nuova Simonelli 04100043.
• Works with: the smaller V_378 connector.

INSTALLATION

Check the water flow direction marked on the bottom of the valve body before installing, port 1 is water in, port 2 is water out; wiring or plumbing it backward will cause the valve to malfunction. CEME's own technical information sheet has full specs.

PRO TIPS

• This item is non-returnable once installed, review our Return Policy and double-check flow direction and voltage against your machine's wiring diagram before ordering.
